- Make
- MAN
- Model
- 18.280 18 Tonne 4X4 BB Rigid (TGM (Euro4/5))
- Engine
- DT
- Year
- 2009-
Engine (DT) (D0836)
Recommendation:
Capacity
6.87 / 5.28 (gal)
(a)Notes
- a. Red/Green dipstick
- b. Alternative recommendations, Euro3/4: diesel sulphur <50ppm, ; >50ppm,
- c. -4°F to >95°F
- d. Alternative recommendations, -22°F to 95°F: EO MAN 3477 5W-40
- e. Alternative recommendations, <-22°F to 95°F: EO MAN 3477 0W-30
- f. Alternative recommendations, -4°F to 95°F: EO MAN 3477 10W-30
- g. Alternative recommendations, 5°F to >95°F: EO MAN 3477 15W-40
Transfer Box (G102)
Recommendation:
Our Recommendation:
FS HD Gear Synthetic 75W-90
Capacity
1.37 / 1.45 (gal)
Notes
- h. -40°F to 100°F
- i. Alternative recommendations, -40°F to 100°F: GO MAN 3343S 75W-90
- j. Alternative recommendations, -40°F to 86°F: GO MAN 342S1 75W-80
- k. Alternative recommendations, -15°F to 100°F: GO MAN 342S1 80W-90
- l. Alternative recommendations, -15°F to 86°F: GO MAN 342S1 80W
- m. Alternative recommendations, 10°F to 100°F: GO MAN 342S1 85W-90
Transmission (ZF 12AS1210)
Recommendation:
Capacity
2.25 (gal)
Notes
- n. -40°F to 100°F
- o. Alternative recommendations, -40°F to 100°F: GO MAN 341Z4 75W-80; GO MAN 341Z3 75W-80
Transmission (Eaton FS8309)
Recommendation:
Capacity
2.25 (gal)
Notes
- p. -40°F to 100°F
- q. Alternative recommendations, -40°F to 100°F: GO MAN 341E3 75W-90
- r. Alternative recommendations, -40°F to 86°F: GO MAN 341E4 75W-80
- s. Alternative recommendations, -15°F to 100°F: GO MAN 341E4 80W-90
- t. Alternative recommendations, -15°F to 86°F: GO MAN 341E4 80W
- u. Alternative recommendations, 10°F to 100°F: GO MAN 341E4 85W-90
Transmission (ZF 9S1310)
Recommendation:
Capacity
2.33 (gal)
Notes
- v. -40°F to 100°F
- w. Alternative recommendations, -40°F to 100°F: GO MAN 341Z4 75W-80; GO MAN 341Z3 75W-80
Differential (HP1333)
Recommendation:
Our Recommendation:
FS HD Gear Synthetic 75W-90
Capacity
2.25 (gal)
Notes
- x. -40°F to 100°F
- y. Alternative recommendations, -40°F to 100°F: GO MAN 3343S 75W-90
- z. Alternative recommendations, -40°F to 86°F: GO MAN 342S1 75W-80
- ba. Alternative recommendations, -15°F to 100°F: GO MAN 342S1 80W-90
- bb. Alternative recommendations, -15°F to 86°F: GO MAN 342S1 80W
- bc. Alternative recommendations, 10°F to 100°F: GO MAN 342S1 85W-90
Front Differential (VP09)
Recommendation:
Our Recommendation:
FS HD Gear Synthetic 75W-90
Capacity
1.64 (gal)
Notes
- bd. -40°F to 100°F
- be. Alternative recommendations, -40°F to 100°F: GO MAN 3343S 75W-90
- bf. Alternative recommendations, -40°F to 86°F: GO MAN 342S1 75W-80
- bg. Alternative recommendations, -15°F to 100°F: GO MAN 342S1 80W-90
- bh. Alternative recommendations, -15°F to 86°F: GO MAN 342S1 80W
- bi. Alternative recommendations, 10°F to 100°F: GO MAN 342S1 85W-90

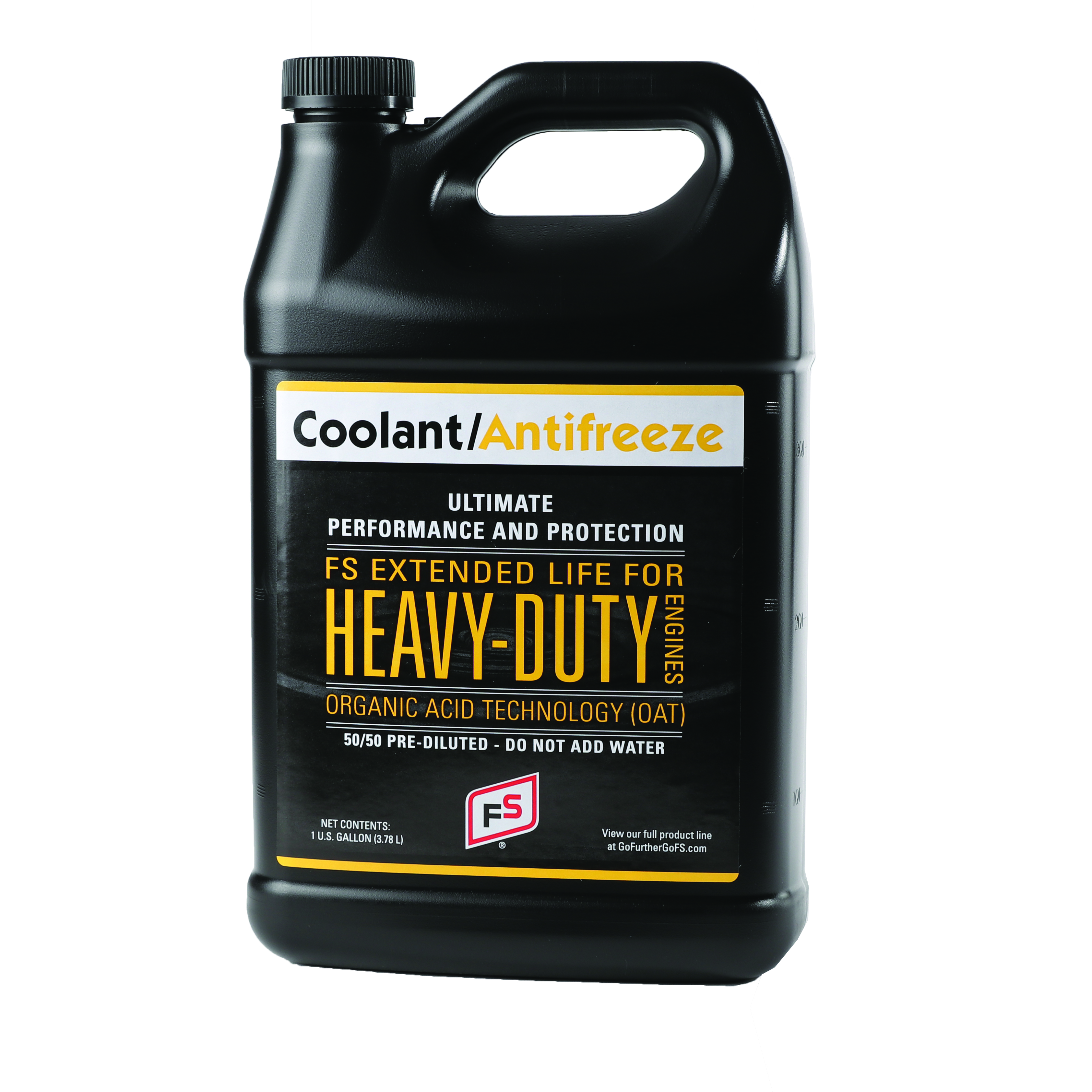

Coolant
Recommendation:
Notes
- bj. Mix ratio, 50% >-37°C
Power Steering
Recommendation:
Notes
- bk. Alternative recommendations: ATF MAN 339Z1
Cab Tilt System
Recommendation:
Capacity
0.132 / 0.211 (gal)
Notes
- bl. -65°F to 160°F
- bm. Alternative recommendations, -22°F to 149°F: DIN HVLP 15
Wheel Bearings
Recommendation:
Centralised Lubrication System (Beka-Max, Grease)
Recommendation:
Centralised Lubrication System (Groeneveld, Grease)
Recommendation:
Notes
- bn. Alternative recommendations: GrLiE 00
Centralised Lubrication System (Vogel, Oil)
Recommendation:
Notes
- bo. Alternative recommendations: GO MAN 341Z2 80W-90; GO MAN 341Z2 75W-90
Clutch Actuator (DOT fluid type only)
Recommendation:
Capacity
0.317 (gal)
Notes
- bp. Alternative recommendations: DOT 3; DOT 5.1
Clutch Actuator (Hydraulic fluid type only)
Recommendation:
Capacity
0.317 (gal)
Clutch Actuator (Kongsberg gear change)
Recommendation:
Capacity
0.74 (gal)
Front Reduction Hubs ((each) VP09)
Recommendation:
Our Recommendation:
FS HD Gear Synthetic 75W-90
Capacity
0.396 (gal)
Notes
- bq. -40°F to 100°F
- br. Alternative recommendations, -40°F to 100°F: GO MAN 3343S 75W-90
- bs. Alternative recommendations, -40°F to 86°F: GO MAN 342S1 75W-80
- bt. Alternative recommendations, -15°F to 100°F: GO MAN 342S1 80W-90
- bu. Alternative recommendations, -15°F to 86°F: GO MAN 342S1 80W
- bv. Alternative recommendations, 10°F to 100°F: GO MAN 342S1 85W-90
Reduction Hubs ((each) HP1333)
Recommendation:
Our Recommendation:
FS HD Gear Synthetic 75W-90
Capacity
0.555 (gal)
Notes
- bw. -40°F to 100°F
- bx. Alternative recommendations, -40°F to 100°F: GO MAN 3343S 75W-90
- by. Alternative recommendations, -40°F to 86°F: GO MAN 342S1 75W-80
- bz. Alternative recommendations, -15°F to 100°F: GO MAN 342S1 80W-90
- ca. Alternative recommendations, -15°F to 86°F: GO MAN 342S1 80W
- cb. Alternative recommendations, 10°F to 100°F: GO MAN 342S1 85W-90
